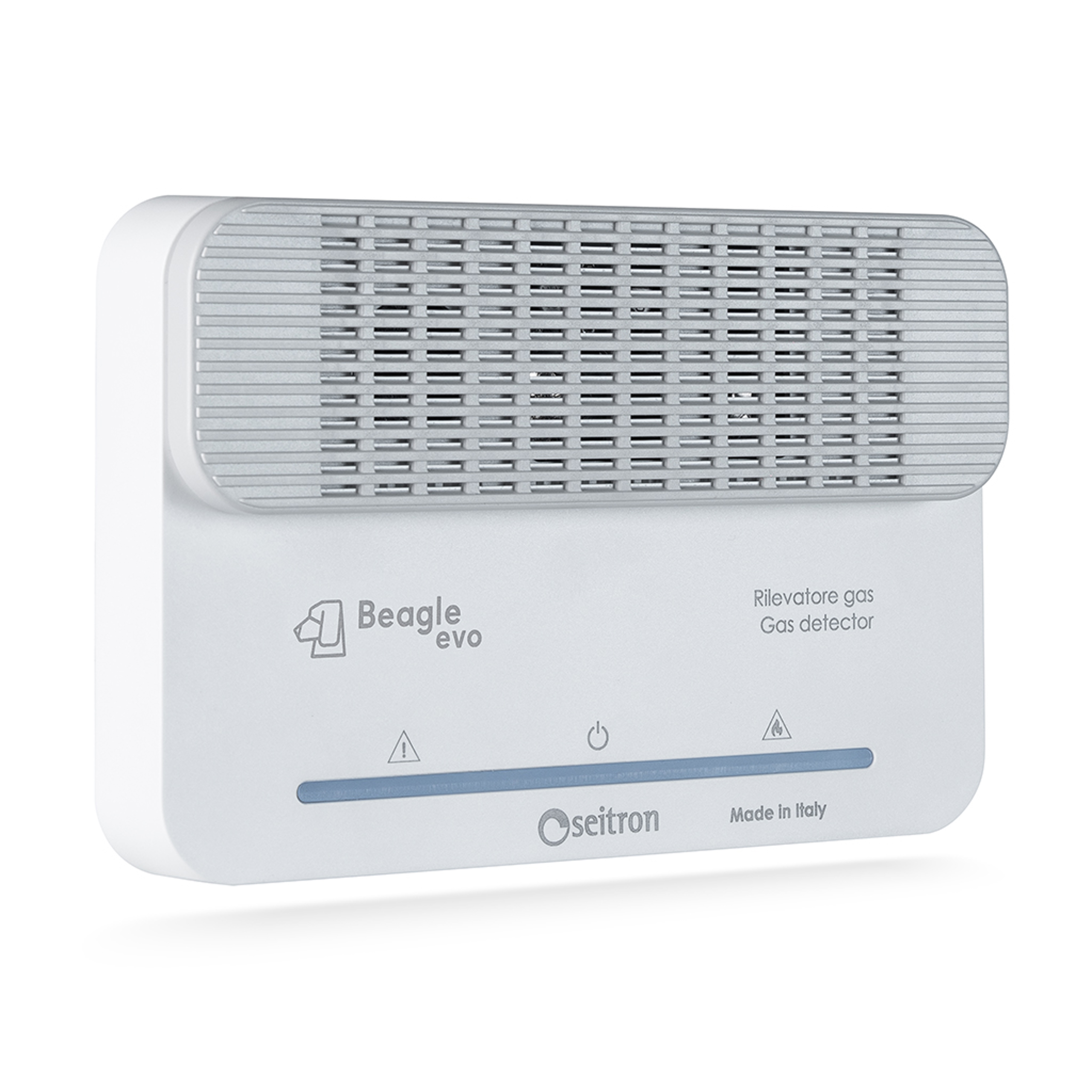

Beagle Evo gas leak detector
Beagle Evo is a range of gas detectors for residential and civil applications designed for the detection of combustible gases and carbon monoxide.
The devices allow direct control of a 230 Vac or 12 Vac solenoid valve (up to 250 Vac) to automatically shut off the gas supply in alarm conditions.
Carbon monoxide models use an accumulation detection logic that reproduces the absorption of the gas in the human body, ensuring an alarm response consistent with the actual risk to the person.
Combustible gas detectors are IMQ certified and compliant with EN 50194-1.
Carbon monoxide models comply with EN 50291-1.

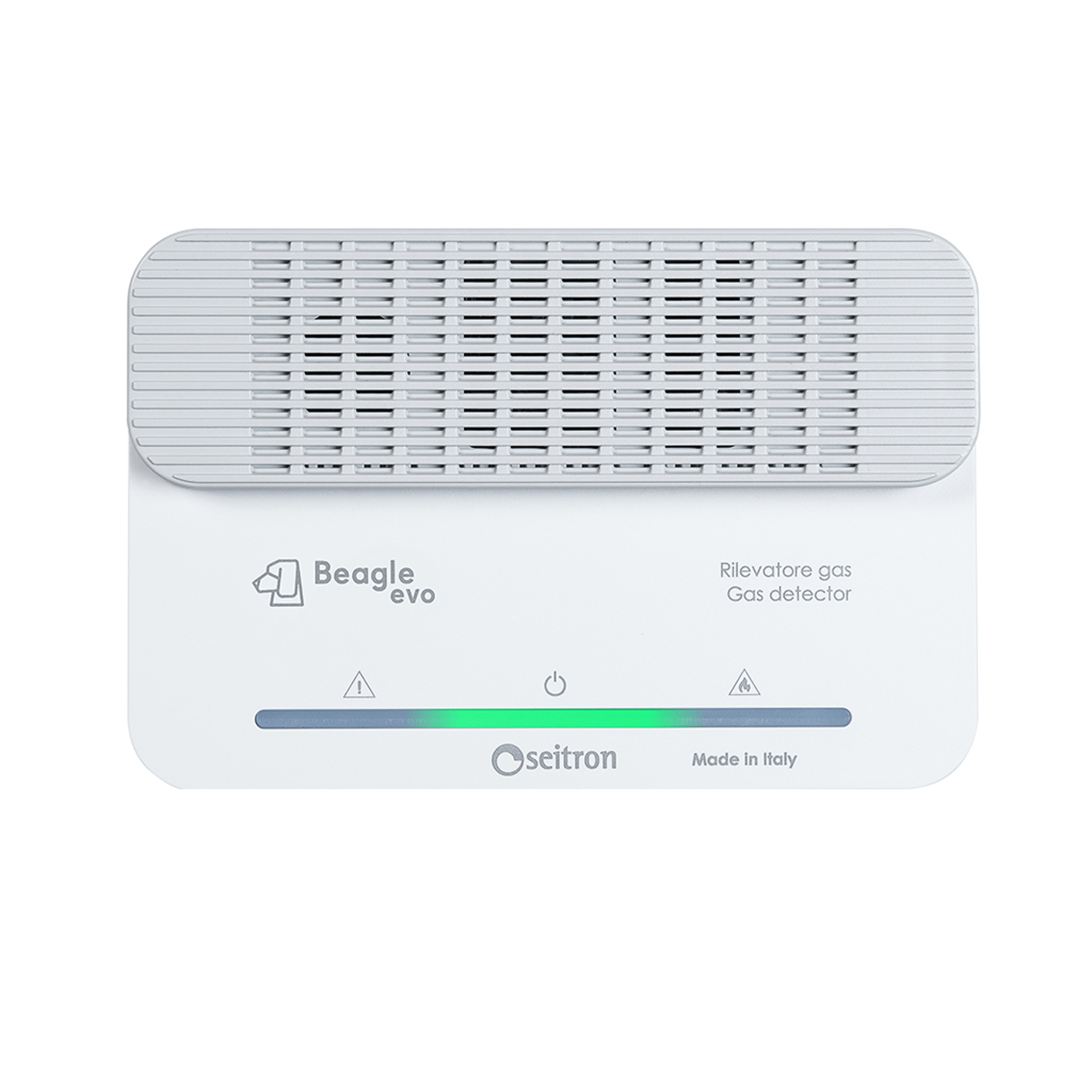

Correct operation and alarm status can be verified through the LED light guide and integrated multifunction button.
The Beagle Plus gas detector is powered by 230V to ensure constant protection, furthermore, thanks to a delay line, Beagle avoids the intervention of the alarm system (due to the sensor stabilization time) when it is powered or, upon restoration, after a mains voltage interruption. Beagle is able to directly control a 230V solenoid valve which will be triggered in the event of a gas leak. The mounted sensor is pre-calibrated and can be replaced directly by the user.
